Installation Media

SIPs are recessed out to fit on 2x4 or 2x6 plates.

SIP construction ensure walls are straight.

A spline is a long, thin "mini"-SIP used to connect SIP panels vertically. They ensure a strong, insulated connection between panels.

Patio door with conventional header.

Conventional header rests on jack stud, transferring load. The jack stud is secured by a recess in the SIP. No king stud is needed.

Window that are approximately 2 feet wide or less can be cut right out of the panel.

Another example of cut-out SIP pieces being used to strategically to reduce wastage. This approach is suitable for non-structural components.

Window arches are easy with SIPs. Simply contour cut the shape right out of the SIP.

Windows are easily foamed in.

Windows are easily foamed in.

A window fastened with nailing fins.

Bay windows are easy-to-build, straight, and leak-proof.

Electrical is done by sawing or routering a vertical chase and box. After wiring is positioned, spray foam seals the groove. The SIP maintains its strucutural integrity and ability to support axial loads.

A vertical electrical chase from the ceiling, for light switches.

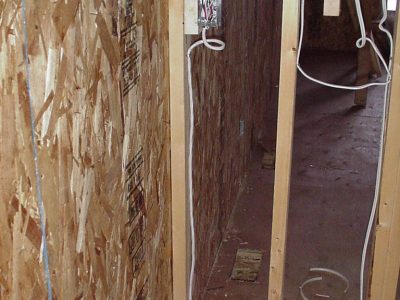

Electrical can be accessed through the floor joists.

In addition to floor joists, wiring for exterior walls can be accessed from interior partitions.
