Thermapan Structural Insulated Panels

Floor Panels

Overview

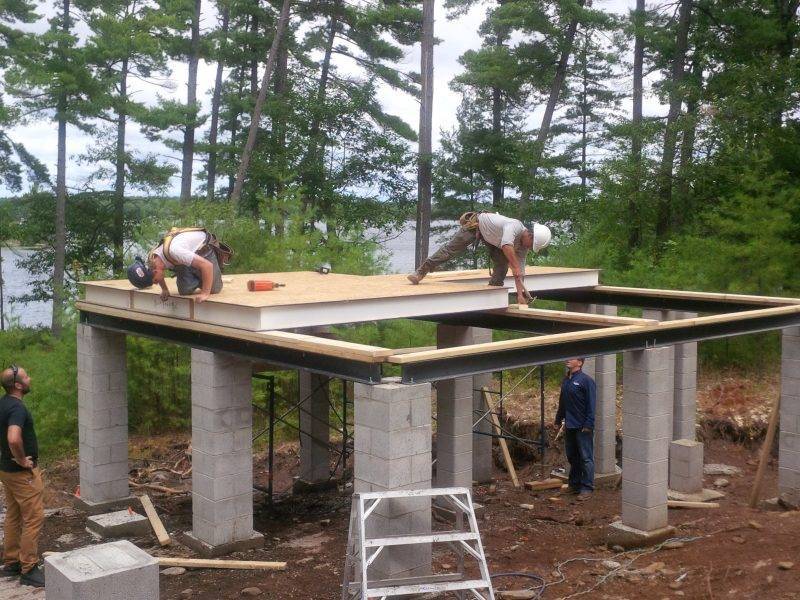

Commonly used for easy floor construction in additions, sunrooms and pier foundations, as well as for living spaces above garages. Floor SIPs are non-vented and therefore provide true insulation, giving you a
comfortable floor to walk on.

Product Facts & Details

  • Floor SIPs are very easy to install. Typical conventional floors for sunrooms and additions that take 2-3 days to build can be assembled in a matter of hours.
  • Because of a panel’s continuous bond between the OSB and EPS, SIP floors keep your living space warm in the winter and cool in the summer.

Panel Sizes & Specifications

Thermal resistances stated for Canada table below comply with Division A, 1.2.1.1.(1).(b) of the National Building Code of Canada (NBC).

Exterior Side 7/16" OSB
Interior Side 7/16" OSB
Length 8', 9', 10', 12', 14', 16'
Width 4'
Thickness 6.5" (R-37)
8.25" (R-49)
10.25" (R-62)
12.25" (R-75)
Exterior Side 7/16" OSB
Interior Side 7/16" OSB
Length 8', 9', 10', 12', 14', 16'
Width 4'
Thickness 6.5" (R-29)
8.25" (R-38)
10.25" (R-48)
12.25" (R-58)
Floor Panels

Installation & Design Resources
